Hindi Research Article, J Chem Appl Chem Eng Vol: 2 Issue: 2
Modeling of Sorption Data for Cr (III) Adsorption onto Cabomba caroliniana from Leather Tannery Effluent Using Non-Linear and Linear Methods of Isotherm Models
Thayaparan M* and Ariharan S
Department of Chemistry, Faculty of Natural Sciences, The Open University of Sri Lanka, Nugegoda, Sri Lanka
*Corresponding Author : Thayaparan M
Department of Chemistry, Faculty of Natural Sciences, The Open University of Sri Lanka, Nawala, Nugegoda, Sri Lanka
Tel: 0112881304
E-mail: mthay@ou.ac.lk
Received: June 15, 2018 Accepted: July 6, 2018 Published: July 11, 2018
Citation: Thayaparan M, Ariharan S (2018) Modeling of Sorption Data for Cr (III) Adsorption onto Cabomba caroliniana from Leather Tannery Effluent Using Non-Linear and Linear Methods of Isotherm Models. J Chem Appl Chem Eng 2:2. doi: 10.4172/2576-3954.1000117
Abstract
Industrial effluents constitute the major source of various kinds of heavy metal pollution in natural water. Water pollution by heavy metals is dangerous because they are toxic, non-degradable by both chemically and biologically and tend to accumulate in aquatic species or deposit in sediments. Leather tannery industry discharges a large volume of untreated effluent which containing both Cr (III) and Cr (VI) in Sri Lanka. Cr (VI) is toxic, but Cr (III) in the effluent, on standing is completely oxidized by dissolved oxygen to more toxic hexavalent chromium. Adsorption is rapidly becoming a prominent process for treating aqueous effluent containing heavy metals. It depends on the ambient conditions. Batch experiments were carried out to investigate the optimum ambient conditions such as initial pH of the solution, dosage of biomass and contact time for the adsorption of Cr (III) to Cabomba caroliniana. Equilibrium isotherm study was performed for the initial concentrations varying from 30-6000 mg/L of tannery effluent. The adsorption data was modeled using widely used two parameter isotherm models such as Langmuir and Freundlich. The best fit among the isotherm models was assessed by linear and nonlinear methods. The both non-linear and linear forms of Langmuir isotherm model showed the better fit of sorption data compared to the Freundlich isotherm model suggesting a monolayer adsorption of Cr (III) onto the biosorbent Cabomba caroliniana. The maximum monolayer coverage was found to be 94.98 mg/g. The separation factor RL (0-1) reveals that the adsorption is a favorable process.
Keywords: Biosorption; Chromium; Cabomba caroliniana; Equilibrium isotherms; Langmuir; Freundlich
Introduction
Pollution of aquatic system has become a serious environmental issue faced by the world today. Many toxic heavy metals are being discharged into aquatic systems due to increased rate of industrial activities. Kelani River in Sri Lanka is a good example of becoming polluted water body by discharging of both treated and untreated industrial effluents [1]. Heavy metals are toxic and they do not undergo degradation and tend to accumulate in aquatic species [2].
Leather tannery industry discharges a large volume of untreated effluent which contains both C (III) and Cr (VI) [3]. Cr (III) is an essential micro nutrient to human and its deficiency can cause diseases such as heart problems, diabetes and metabolic disorders. But Cr (III) in excess amounts causes adverse health effects such as skin rashes [4]. Cr (VI) is a powerful oxidant which oxidizes biomolecules to induce toxicity. It is also very dangerous to human health as it is carcinogenic [5].
During tanning process, Cr (III) is oxidized to Cr (VI). Excess Cr (VI) is reduced by adding suitable reducing agents [6]. Therefore the tannery effluent bears large volume of Cr (III) and a small content of Cr (VI), when it is discharged. It is very important to be mindful that the Cr (III) in the tannery effluent generates more toxic Cr (VI) through the oxidation by dissolved oxygen. The oxidation of Cr (III) to Cr (VI) is thermodynamically feasible in water bodies [7].
Biosorption is a physiochemical process that occurs naturally in certain biomass which allows it to passively concentrate and bind heavy metals from waste water to its cellular structure. It has now been recognized as a potential alternative to the conventional methods for recovery of heavy metals [8]. Cabomba caroliniana is an aquatic plant known to adsorb both Cr (III) and Cr (VI) from aqueous solutions [9]. Biosorption process is greatly influenced by the ambient conditions such as initial pH of the solution, biosorbent dosage, initial metal ion concentration, contact time and temperature [10].
In this study the optimum ambient conditions for adsorption of Cr (III) on to Cabomba caroliniana were investigated. The sorption data was modelled using the two-parameter isotherm models namely, Langmuir and Freundlich isotherm models.
Materials and Methods
Materials
The chemicals used for this study were of analytical reagent grade. pH of the effluent was adjusted by using conc. HNO3 and conc. NH4OH .The pH was measured by using a pH meter (OHAUSSTARTER 3000 bench pH meter). Temperature was measured by using laboratory thermometer.
Conductivity of the effluent was measured by using a conductivity meter (OHAUS-conductivity STARTER 3000 C). Acid digestion was carried out by using heating digester (VELP SCIENTIFICA DK-20). Total chromium content in the effluent was determined by using Atomic Absorption Spectrophotometer (Varian AA 280FS). A rotary flask shaker was used for the agitation of the samples. All the weights were measured by using analytical balance (Pioneeráµ?á´¹ balances, Model no: PA153). Distilled water was used to prepare all the dilutions. Stock chromium solution (1000 ppm) was prepared by dissolving analytical grade K2CrO4(s) in distilled water.
Collection of leather tannery effluent
A dark green color tannery effluent (50 L) was collected from a Leather factory in Mattakkuliya, Sri Lanka. It was found to contain ∼ 6000 mg/L of total chromium [11].
Preparation of biosorbent
Healthy and matured Cabomba caroliniana were collected from a water stream in Horana. Plants were thoroughly washed with tap water, and then with distilled water, to remove the impurities present in the plant sample. Then the plants were air dried for 2 days & oven dried for 3 days at 60oC. Dried plant samples were ground into powder and it was sieved through a sieve with pore size 710 μm. Finally the biomass was sealed in a plastic bottle and stored for future use [12].
Batch experiment
In order to achieve a successful biosorption, it is necessary to investigate the ambient condition which influences the biosorption process, before applying it in removing chromium from a leather tannery industry. Batch experiments were carried out in room temperature to optimize the ambient conditions such as initial pH of the solution, biosorbent dosage and contact time. All the experiments carried out in triplicates and the experimental setup with biomass in distilled water was served as the control experiment.
Sorption experiment
Equilibrium adsorption study was carried out with initial concentrations varying from 30-6000 mg/L of tannery effluent using optimized conditions.
All the suspensions were filtered by using Whitman filter paper No 1 and the residual solutions were digested to determine the total chromium content using Atomic Absorption Spectrophotometer (AAS).
Percentage removal of chromium in each experiment was calculated by,
(1)
Where Co and Ce are Initial concentration and equilibrium concentration respectively.
Equilibrium adsorption study
Equilibrium relationship between adsorbent and adsorbate molecules are described by adsorption isotherms [13]. Adsorption isotherms are the basic requirements for designing an adsorption separation process. Sorption experimental data were subjected to the Langmuir and Freundlich isotherms models by using linear and nonlinear methods [14].
Langmuir isotherm model: This model describes the monolayer adsorption on homogeneous surfaces [15]. It assumes that there is no interaction between adsorbate molecules. The non-linear Langmuir equation is given as,
(2)
Whereas,
Câ??=Equilibrium concentration.
qâ??=Amount of adsorbate per gram of adsorbent at equilibrium.
qm=Monolayer adsorption capacity.
b=Energy of adsorption (Langmuir equilibrium constant)
Non-linear Langmuir equation can be linearized into five different forms which are given in Table 1. Among these linear forms, Langmuir-I and Langmuir-II have been frequently used by most of the researchers to estimate the adsorption parameters [16].
| Linear forms | Expression |
|---|---|
| Langmuir- I |  (3) |
| Langmuir- II |  (4) |
| Langmuir- III |  (5) |
| Langmuir- VI |  (6) |
| Langmuir- V |  (7) |
Table 1: Linear expressions of the langmuir isotherm model.
The characteristics of the Langmuir isotherm can be expressed in terms of the separation factor (RL). It is a dimensionless constant which can be used to determine whether the adsorption process is favorable or not. RL can be calculated using the below equation.
(8)
There are four possibilities for RL.
If RL>1: Unfavorable adsorption.
RL=1: linear adsorption.
RL=0: Irreversible adsorption
0<RL<1: Favorable adsorption [17].
Freundlich isotherm model: It is an empirical isotherm model. It is often used for heterogeneous surfaces and multilayer adsorption by assuming different sites with different energies involved [18].
Non-linear Freundlich equation is given as,
(9)
Where,
Câ??=Equilibrium Concentration.
qâ??=Amount of adsorbate per gram of adsorbent at equilibrium.
Kf =Adsorption Capacity
= Adsorption Intensity
The linear form of Freundlich equation is,
(10)
The value of ‘n’ gives an indication of the favorability of the adsorption.
If 2<n<10: Good adsorption capacity, 1<n<2: Moderate adsorption capacity and n<1: Poor adsorption capacity [19].
In this study linear regression method and non-linear trial and error method of both Langmuir and Freundlich isotherm models were used to analyze the sorption data of the adsorption of Cr (III) on to Cabomba caroliniana from the leather tannery effluent. The correlation coefficient (R2) and chi test were used to select the best linear and non-linear theoretical isotherm.
Result and Discussion
Initial pH of the solution
pH is an important parameter which influences the biosorption process. The effect of initial pH of the solution on biosorption of Cr (III) on Cabomba caroliniana has been investigated by varying pH from 1 to 5.5 with the raw tannery effluent at room temperature 30.1°C and at 100 rpm.
Figure 1 shows that the percentage removal of total chromium and adsorption capacity (qe) of the biosorbent increased gradually with increasing pH up to pH 4.0. An optimum was obtained at pH 4.5. Then it starts to decrease above pH 4.5. The experiment was carried out only up to pH 5.5 as Cr (III) forms insoluble hydroxide above pH 5.5.
Figure 1: Percentage removal of the total chromium from leather tannery effluent and adsorption capacity of biosorbent at different pH by Cabomba caroliniana [Raw effluent (~6000 ppm) - Biosorption dosage-1.000 g, Contact time-3 h, Agitation speed-100 rpm, Room temperature-30.1°C].
At lower pH, surface of the biosorbent was positively charged. Therefore, there is repulsion between the biosorbent and the chromium ions. Also at lower pH, there was a competition between Cr (III) ions and H⺠ions in the solution, for the adsorption sites of the biomass. As a result, percentage removal of the total chromium from the leather tannery effluent and adsorption capacity of the biosorbent is low at lower pH ranges [20].
As pH increases, surface of the biosorbent becomes negatively charged. Therefore the repulsion between chromium ions and the biosorbent is reduced. As a result, adsorption increases as pH increases.
The maximum percentage removal was obtained at pH 4.5 and it was selected as optimum pH for further experiments. The removal efficiency was found to be highly dependent on pH of the tannery effluent.
Biosorbent dosage
The effect of dosage of biosorbent on adsorption of Cr (III) on Cabomba caroliniana was investigated at optimum pH 4.5 at constant initial concentration (1470 mg/L) of the tannery effluent at room temperature 30°C. The suspension was agitated at 100 rpm.
The Figure 2 shows an increase in removal of Cr (III) from 0.5% to 50% as the biosorbent dosage increased from 0.1 g to 2.0 g. This is because when the biosorbent dosage was increased, the surface area of the biosorbent and the available adsorption sites also increased. Hence the removal efficiency increased. And only a marginal increase in the removal of Cr (III) was observed beyond 2.0 g of biomass. It may be due to the saturation of binding sites in the biosorbent. However 100% removal was not observed. This further explains that concentration gradient is becoming a dominant driving force for the sorption process [21]. The dosage of biosorbent 2.0 g was selected as optimized weight for further experiments.

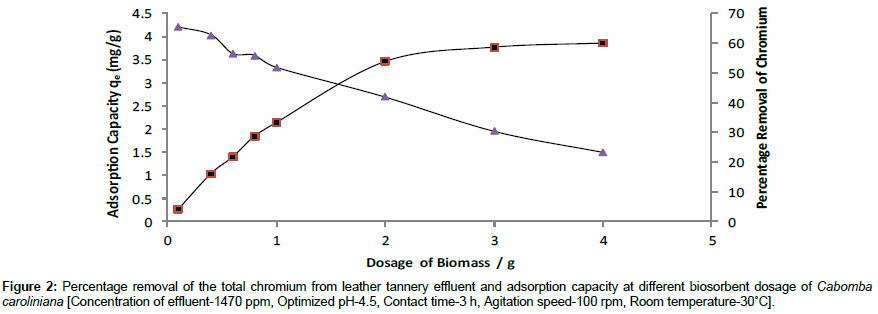

Figure 2: Percentage removal of the total chromium from leather tannery effluent and adsorption capacity at different biosorbent dosage of Cabomba caroliniana [Concentration of effluent-1470 ppm, Optimized pH-4.5, Contact time-3 h, Agitation speed-100 rpm, Room temperature-30??C].
Sorption experiment
Batch experiments were carried out for different initial concentrations varying from 30-6000 mg/L to investigate the effect of initial concentration on the adsorption of Cr (III) onto Cabomba caroliniana.
The influence of initial concentration on the adsorption process is shown in Figure 3.

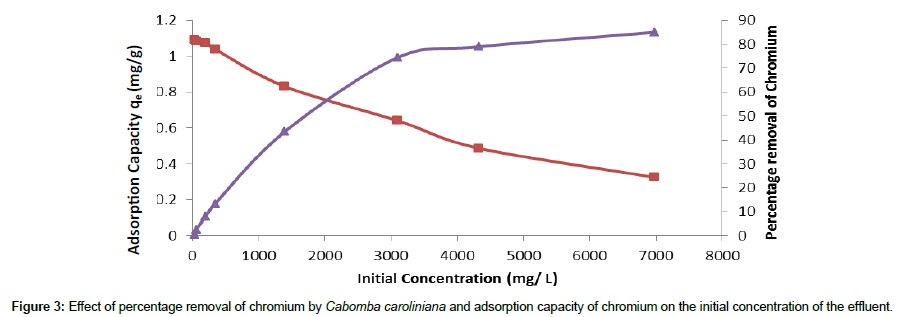

Figure 3: Effect of percentage removal of chromium by Cabomba caroliniana and adsorption capacity of chromium on the initial concentration of the effluent.
Figure 3 shows the effect of initial concentration as a function of both the percentage removal of chromium at equilibrium and the amount adsorbed per unit weight of biosorbent. It reveals that as initial concentration increases, chromium adsorbed per gram of biosorbent increases while percentage removal of chromium decreases.
It was observed that the percentage removal of chromium was high at lower concentration and it progressively decreased from 82% in 32 mg/L to 25% in 6000 mg/L of the initial concentration of effluent. This is because at lower concentration there were enough available binding sites for Cr ions. When the concentration was increased, number of chromium ions competing for the same available binding sites also increased. Therefore percentage removal of chromium progressively decreased with increasing initial concentration of the effluent.
Adsorption capacity increased with increasing initial concentration up to 3000 mg/L of the tannery effluent. This is because at lower concentrations most of the metal ions present in the solution would interact with binding sites of the biosorbent and thus facilitate the adsorption.
There was no significant increase in adsorption capacity above 3000 mg/L of the effluent and it remained almost same at higher concentrations. This is because at higher concentrations of the effluent, some of the chromium ions left unadsorbed in the solution, due to the saturation of the binding sites. After the saturation of the binding sites there will be no significant change in the adsorption capacity.
The adsorption isotherm for biosorption process is developed and shown in Figure 4.

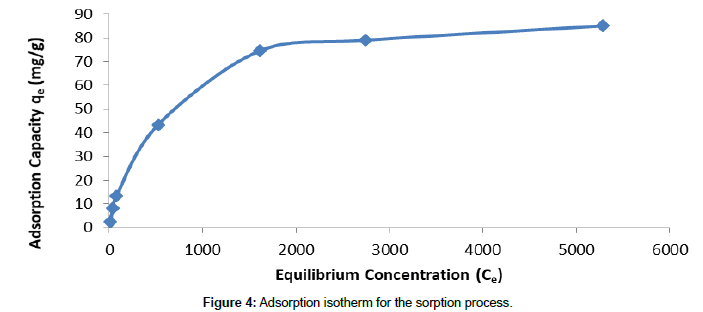

Figure 4: Adsorption isotherm for the sorption process.
It is similar to the Type-1 adsorption isotherm which can be explained well by using Langmuir isotherm model [22].
Selection of the most appropriate isotherm model
In order to optimize the adsorption isotherm parameters for this process, it is important to select the most appropriate adsorption isotherm. To achieve this, both the non-linear and linear forms of Langmuir and Freundlich isotherm models were subjected to determine the best-fit isotherm model for the adsorption of Cr (III) onto C. caroliniana.
Linear method
Langmuir Isotherm model: Adsorption isotherms for five linearized Langmuir equations obtained using experimental sorption data are shown in Figures 5-9.
Figure 5: Linear Langmuir-I isotherm.

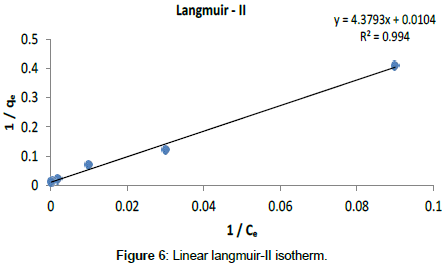

Figure 6: Linear langmuir-II isotherm.

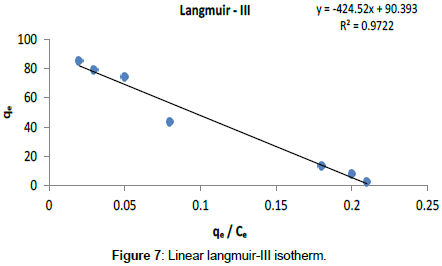

Figure 7: Linear langmuir-III isotherm.
Figure 8: Linear langmuir-IV isotherm.
Figure 9: Linear langmuir-V isotherm.
The adsorption parameters obtained from linearized Langmuir equations are given in Table 2.
| Isotherm | b | qm(mg/g) | R2 | RL | χ2 |
|---|---|---|---|---|---|
| Langmuir- I | 2.21 10-3 | 92.59 | 0.99 | 0 - 1 | 0.011 |
| Langmuir- II | 2.37 10-3 | 96.15 | 0.99 | 0 - 1 | 0.012 |
| Langmuir- III | 2.36 10-3 | 90.39 | 0.97 | 0 - 1 | 0.015 |
| Langmuir- VI | 2.30 10-3 | 91.35 | 0.97 | 0 - 1 | 0.015 |
| Langmuir- V | 2.20 10-3 | 103.18 | 0.99 | 0 - 1 | 0.012 |
Table 2: Isotherm parameters obtained from the linearized Langmuir model.
It was observed that all five linearized Langmuir equations showed high R2 values (more than 0.97) with low χ2 values, confirming that all five types are appropriate to use to represent Cr (III) adsorption on Cabomba caroliniana. The calculated monolayer adsorption capacity (qm) is above 90 mg/g for all five linearized Langmuir forms.
A plot of RL versus initial concentration of tannery effluent is shown in Figure 10.

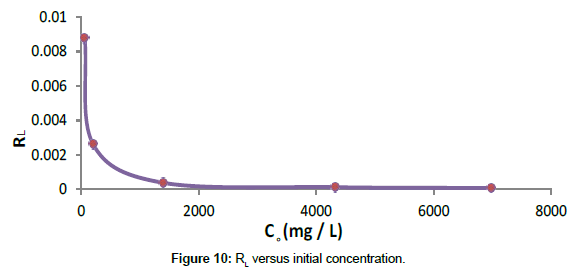

Figure 10: RL versus initial concentration.
According to Figure 10, within the range of initial concentration of tannery effluent studied the value of RL lies between zero to one (0<R<1). This indicates that adsorption process is a favorable process.
Freundlich Isotherm model: Linear method- a plot of linear Freundlich isotherm is given in Figure 11.
Figure 11: Linear freundlich isotherm.
Experimental sorption data fitted with Freundlich isotherm model with correlation coefficient of 0.89. Calculated ‘n’ value from the graph is 1.25, which indicates a moderate adsorption capacity of the biosorbent.
Non-linear method
Langmuir isotherm model: A trial and error method was used for the nonlinear method by using the solver add- in with Microsoft Excel to determine the calculated adsorption data (qc). Theoretical plot was compared with the sorption data. The results have been shown in Figure 12. According to Figure 12, Langmuir equation showed a very good agreement with the experimental data. It shows a R2 value of 0.96. The monolayer coverage was found to be 94.98 mg/g.

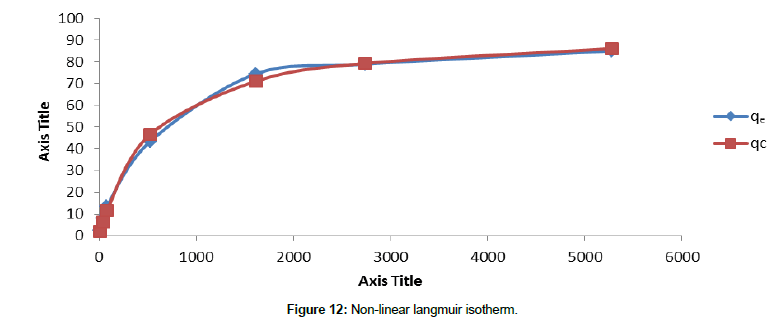

Figure 12: Non-linear langmuir isotherm.
Freundlich isotherm model: A plot of non-linear Freundlich isotherm is shown in Figure 13.
Figure 13: Non-linear feundlich isotherm.
Above plot suggests that experimental values are deviating from the theoretical adsorption values at higher concentration. It shows a R2 value of 0.93.
A comparison of non-linear Langmuir and Freundlich isotherm parameters is given in Table 3.
| Langmuir Parameters | qm | b | R2 | χ2 |
|---|---|---|---|---|
| 94.98944 | 0.001844 | 0.96 | 0.09 | |
| Freundlich Parameters | kf | n | 0.93 | 1.43 |
| 3.903728 | 2.683573 |
Table 3: Nonlinear isotherm parameters.
When comparing the χ2 values of both models, a lower χ2 value (0.09) for Langmuir isotherm further suggests that this model can be used to explain the adsorption process of Cr III) on to Cabomba caroliniana from the leather tannery effluent.
Conclusion
Dead biomass of Cabomba caroliniana, effectively removes chromium from the leather tannery effluent. Adsorption process depends on pH and the optimum pH found to be pH 4.5. Adsorption process is rapid and it attained the equilibrium within 45 min.
Langmuir model fitted better than the Freundlich model which suggests that the surface area of Cabomba caroliniana is homogeneous with a monolayer adsorption.
Higher R2 value and a very small χ2 for both the linear and nonlinear methods for Langmuir model suggests that Langmuir isotherm model can be used to explain adsorption behavior of Cr (III) onto the biosorbent Cabomba caroliniana.
