Review Article, J Comput Eng Inf Technol Vol: 12 Issue: 6

Endpoint Protection of Windows Operating System using Threat Intelligent Cycle

Bijaya KC^* and Roshan Chitrakar

Department of Science and Technology, Pokhara University, Pokhara, Nepal

*Corresponding Author: Bijaya KC
Department of Science and Technology, Pokhara University, Pokhara, Nepal
E-mail: kecybijaya@gmail.com

Received date: 20 March, 2023, Manuscript No. JCEIT-23-92387;
Editor assigned date: 23 March, 2023, PreQC No. JCEIT-23-92387 (PQ);
Reviewed date: 06 April, 2023, QC No. JCEIT-23-92387;
Revised date: 24 May, 2023, 2023, Manuscript No. JCEIT-23-92387 (R);
Published date: 31 May, 2023, DOI: 10.4172/2324-9307.1000274

Citation: Bijaya KC, Chitrakar R (2023) Endpoint Protection of Windows Operating System using Threat Analysis Cycle. J Comput Eng Inf Technol 12:4.

Abstract

Keywords: Threat intelligence cycle; Hardening windows OS; Eternal blue; Machine learning; CICIDS2017 datasets

Introduction

Securing personal systems is challenging as every system in the world is connected to a network and to the internet. Similarly, the tendency of exploiting personal data and hacking the personal system or any digital gadget is increasing in many intruders in order to get someone’s personal information such that they can use it for their own benefit or the victim’s loss. System hardening helps in detecting as well as closing every loophole present in the system in order to protect it from different types of cyberattacks. It involves reducing or fully cutting the pathway for attackers. For this, hardening involves segmenting resources, updating security patches, resetting default passwords and timely updating new passwords, hashing passwords, and also implementing the Principle of Least Privilege Policy (POLP). With the advancement in technology and the use of different platforms for storing data as well as information, there is an ever-increasing pace of data breaches and system vulnerabilities like DDOS, trojans, worms, viruses, and various malicious attacks. Moreover, in order to secure a whole network, it is necessary to protect every endpoint of a network so that no such issue occurs [1]. OS hardening means securing bios and base software such that a complete system and various applications in the system can be protected. Some people are still unaware of different vulnerabilities and security configurations while others don’t pay proper attention to configuring and updating patches due to their busy schedules or carelessness [2]. Similarly, the lack of dedicated anomaly tracing and system configuration leads to spoofing, DOS/DDOS, and an unsafe gateway for which the vulnerable spot starts from endpoints that’s why proper hardening and updating patches is a must to save self from cyber-attack and prevent several losses [3].

However, the research shows a lack of knowledge gap in people about maintaining security protocols in the endpoints. People don’t know how, why, and where to configure security in the system because of which their system is compromised. Such is a problem of every organization, enterprise, finance, and government sector along with big renowned companies, and also only signature-based threat detection is insufficient nowadays due to lots of threats and vulnerabilities seen in the world [4].

To provide the solution for such problems, this paper focuses to solve the problem of cyber-attack and OS vulnerabilities in an endpoint by hardening OS, patching, signature-based, and behavior analysis along with IDS/IPS implementation in a reasonable way. The first section of our proposed methodology provides TIC for filling the knowledge gap in people or staff at enterprises and the next section is about signature and behavior analysis for detecting anomalies and abnormalities seen in the log at endpoints along with machine learning implementing IDS/IPS security threat detection and protection system which can pass alert notification. All these are done within TIC which has a plus maintenance phase finally concluding with the result and expectations [5]. This paper contributes to defining a systematic approach to fill the knowledge gap in people about security configuration by implementing the threat intelligent cycle. The paper contributes to do proper threat analysis with maintenance of security.

Literature Review

Threat is detected for finding vulnerabilities in an endpoint according to the need of network or an enterprise. System hardening, patch updating and finding threatful signature through antivirus are primary task that has been in use from ages. However, this only can't find emerging vulnerabilities in the world and people have knowledge gap like how to control over endpoints accurately so that no sensitive information is leaked and to comprehend how serious; the hazards can be [6]. This knowledge gap can be filled in people by making all the security practices systematic using threat intelligence cycle which emerged in 2013s but has not been used wisely till now. Threat Intelligence cycle has 4 phases consisting: Planning and requirement analysis, collection and processing, analysis: Signature based and anomaly based threat analysis, dissemination and feedback.

Related works

The idea of machine learning has been a good approach to analyzing behavior at the host and network especially analyzing anomalies in user behavior by authors Nassif and Nguyen. The author Nassif shows the approach to stop different cloud security threats like DDOS, IP spoofing and maintain data privacy in the cloud by using machine learning for which KDD and KDD CUP’99 dataset has been used [7]. The primary cause of data breaches especially in enterprises is due to lack of proper security configuration in endpoints in paper by chandel. End Potection Platform (EPP) and Endpoint Detection and Response (EDR) along with HIPS/HIDS has been used to analyze different features that a protection system or software should possess in order to help enterprise deal with data leakage and its avoidance. The author Chandel also highlight the importance of creating awareness on people about security configuration in endpoints as users are actually responsible for eventual security management in any enterprise. The log generated or collected by security controls have been seen to be mostly used for forensic investigation only after the consequences of the log have been detected but it is also necessary to proactively detect a breach in an enterprise for operational environment setup in an enterprise by researcher Li, et al. for this a Deep Convolutional Generative Adversarial Network (tDCGAN) has been used by the author which itself generates pseudo malware to differentiate it from real malware in paper by Kim, et al. The author Burihabwa states that for smooth OS performance, the file system should be kept safe for which the idea of SGX within a CPU has been implemented. Especially with windows OS, there are many unknown vulnerabilities, and only disabling not useful services is less efficient for which author borbor implemented a heterogeneous hardening approach to deliver some optimal solutions like firewall rule modification, disabling services, service diversification and access control. The paper by Guo is based on locating vulnerabilities in 2 parts: Approximately and accurately by data stream technique and dynamic analyzer technique. The author has used MS15-034 for this that can only check remote code vulnerability through HTTP request on windows system [8]. Similarly, in the work by Panigrahi, Ranjit, and Samarjeet Borah who have used CICIDS 2017 datasets has shown some shortcoming with the datasets for which new class labeling has been done and some classes has been merged to form new class however class imbalance problem has been found in this research work. In research by Maseer; Ziadoon Kamil; Robiah Yusof; Nazrulazhar Bahaman; and Salama A. Mostafa, and Cik Feresa Mohd Foozy states that most of the datasets used for cybersecurity are imbalance with 98% normal and 2% attacks datasets which showed large number of redundant record for which different supervised and unsupervised learning algorithm has been used. 60% of training and 40% of testing datasets have been used without proper feature selection and 5 folds cross-validation due to which the proposed model was seen time consuming like random forest in paper work. Also with the research done by Yulianto; Arif; Parman Sukarno; and Novian Anggis Suwastika where the use of Synthetic Minority Over-sampling Technique (SMOTE), Principal Component Analysis (PCA) and Ensemble Feature Selection (EFS) has been used on CICIDS 2017 datasets which gave under the Recovery Operating Characteristic curve (AUROC) of 92% and adaboost classifier using ensemble feature selection and SMOTE with accuracy 81.83%, precision 81.83%, recall 100% and F1 score 90% however the proposed methodology has not been accepted for commercial purpose and there is more chance of improving the accuracy. The author didn’t propose any accurate methodology for finding vulnerability for new threats. The author Berlin Chandel and Burihabwa proposed a way of hardening OS but didn’t propose any systematic way of why and in which port or at which endpoints, it is needed to do security configuration [9].

Similarly, only whitelisting and blacklisting won’t be enough to protect from unknown threats. Device guard and applocker can’t safeguard from fileless threats like malicious link by author Durve. Also, it is not enough to provide security configuration to administrators to protect endpoints by author Guo; Berlin; Burihabwa; and Li. The problem of updating 10,000 data using the reinforcement learning approach and system being bulky with use of EPP and EDR has been seen in the paper by Nguyen, Chandel. So, to solve this problem our paper implements behavior analysis using “splunk” which is a machine learning-based and can do users as well as entity behavior analysis to find anomalies in an effective way in any network which is implemented properly within Threat Intelligence Cycle (TIC) that define a systematic approach of configuring security practices filling the gap of awareness in people about security implementation as per the need of network [10].

Methodology

Proposed model

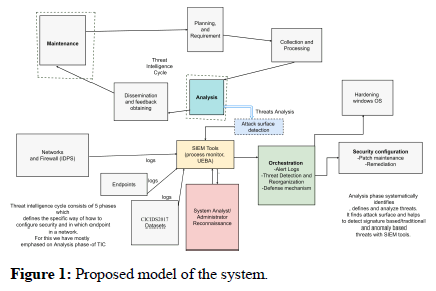

The proposed model consists of a number of steps such as firstly planning the safety of datasets in endpoints and then conducting all other security protocols within the threat intelligence cycle for which steps like planning, collecting, analysis, dissemination, and feedback and then the maintenance of security needs to be done (Figure 1 and Table 1) [11].

Table 1: Comparative analysis of proposed system features and existing system features.

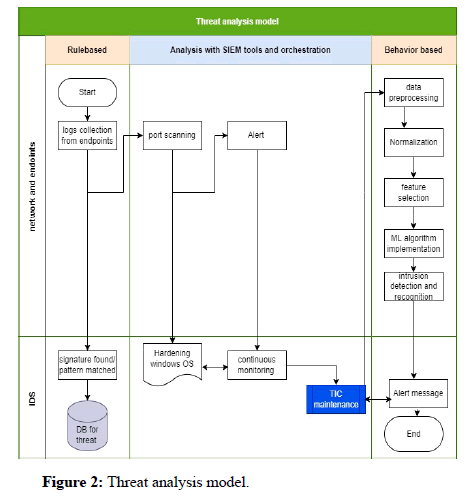

Threat analysis model

This section includes two types of threats that can be seen in endpoints and indicates what the problem is, and how to analyze the problem (Figure 2). This consists of analyzing threat in two ways which are as below:

Signature based threat analysis: This method is traditional one which sets certain firewalls for those malicious object like file, viruses, and so on. However, it can’t protect fully from different types of malicious behavior in our endpoints mostly that unknown threats like zero-day.

Behavior based/anomaly based threat analysis: For this, we need to look over the answer to the following questions as What do users do?, How do they do?, What are their usual action?, At what location do they usually act?

For detecting behavior, both the incoming and outgoing packet from endpoints needs to be monitored and an alert is needed to be passed if some suspicious behavior is detected then signature-based as well as anomaly-based behavior analysis method is implemented.

Experiemental datasets collection

Few of the datasets have been collected by continuous monitoring of endpoints from pfsense firewall log, splunk, and other SIEM tools like process monitor and process explorer to check the overall performance of windows OS to find threatful patterns or signatures [12]. Similarly, a labeled datasets CICIDS2017 dataset has been used for training machine learning model to detect different unknown threats with proper behavior analysis. CICIDS2017 dataset comprises both normal as well as anomaly datasets with new malware attacks such as brute force FTP, brute force SSH, DoS, heartbleed, web assault, penetration, botnet, and DDoS. Name of this dataset is fundamentally based on the timestamp, source and destination IPs, protocols and attacks, source and destination ports values [13]. Computing the average of the all the words in the corpus, document vector which represent the overall category i.e. party tweets can be generated.

Why CICIDS2017 datasets?: The reason for this can be depicted with the comparative analysis of different datasets (Tables 2 and 3).

Comparing datasets (✓=available features, ×=false or not available).

Table 2: Comparative analysis of datasets.

Table 3: Describing CICIDS2017 datasets.

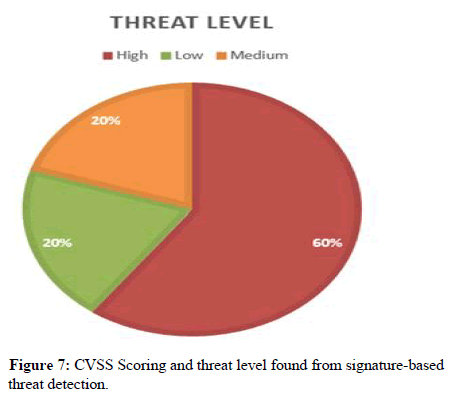

CVSS rating criteria

CVSS score can offer assistance to distinguish, track, and remediate any vulnerabilities that debilitate your commerce and the arrangement. This system makes a difference to guarantee privacy with respects to their user's delicate information to organize data for businesses and maintain security in a network. The base score breakdown includes:

0.0=No risk to the system
0.1-3.9=Low
4.0-6.8=Medium
7.0-8.9=High
9.0-10.0=Critical.

Results and Discussion

This section contains expected outcomes and finding of our research. Evaluation measures used are accuracy, precision, recall and F1-score for a machine learning model like as for finding signature based threats evaluating SIEM tools accuracy to find threats CVSS scoring is done (Table 4).

Tools used: Some of the tools used for the proposed methodology are:

Table 4: Tools and device used.

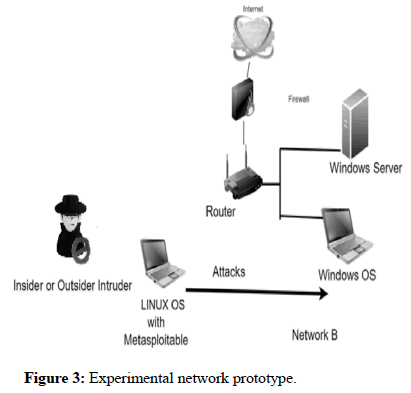

The experimental environment

This section deals with the implementation and analysis of the endpoint protection of windows OS by behavior analysis within TIC [14]. The experiment was performed in Jupyter notebook along with SIEM tools with windows 10 home 64-bit (10.0, build 19043) HP ENVY 15 × 360 PC, bios F.11, 8192 MB RAM and 2.6 GHZ Intel core 4510u CPU processor while linux has been used as an attacking source to the endpoint (Figure 3).

Implementation scenario

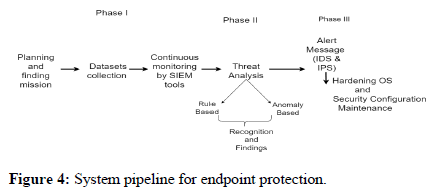

The intelligence cycle is represented where each phase is carried simultaneously to analyze data and produce meaningful intelligence in order to maintain quality of security features. The transformation of large source of data that has been gathered from authenticated endpoints in network is done after proper analysis into suitable form for data normalization, translation, decryption, protection and storage along with decision making through statistical procedure (Figure 4).

First of all, planning and finding mission has been done to protect endpoints and continuous monitoring has been done by SIEM Tools to collect datasets, find threats and harmful patterns in any link/file or incoming and outgoing traffic. Then rule based threats has been found using SIEM tools and for finding more unknown vulnerable threat labeled datasets CICIDS2017 has been used for building, training a model and then predicting threats. As per the pipeline, the phases [15].

First phase consists:

• Planning and finding mission.
• Dataset collection from endpoints.
• Continuous monitoring by SIEM teams.

Second phase consists of

• Threat analysis
• Rule based/signature based threat analysis.
• Anomalies based threat analysis.
• Recognition and detecting.
• Alert message.

Third phase consists of

• Orchestration.
• Hardening OS.
• Maintenance.

Conducting phase I we find that

• Windows OS should be protected with firewall setup at the network for inbound traffic.
• Proper monitoring of endpoints with windows OS and router in which it is connected should be done by SIEM tools.
• Data collection or log record collection should be done for analysis.
• Some malicious file could be auto detected by windows defender and deleted while some of those were still undetectable to windows defender (Tables 5-7).

Malware analysis: Wireshark has been used.

Table 5: Malware analysis by wireshark.

Windows events logs analysis by process monitor

Table 6: Windows OS analysis by process monitor.

Windows event log analysis by process explorer

Table 7: Windows event log analysis by process explorer.

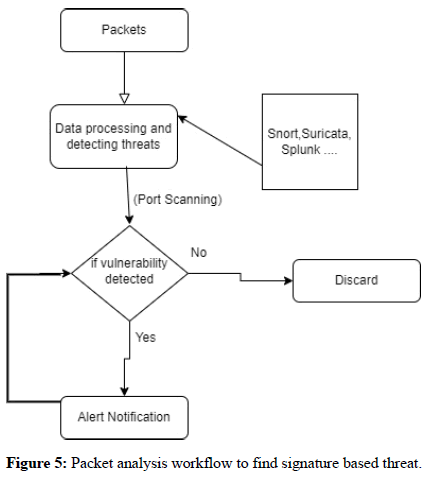

Phase II: Signature based intrusion analysis workflow

• Collected data packets monitoring.
• Data processing and detecting threats using snort suricata and firewall.
• If packet matches, pass alert log and then do hardening of windows OS, port scanning, use antivirus else discard the packet (Figure 5).

Packet monitoring and packet analysis as well as data processing should be done. For detecting any threat Alert notification should be set up in an endpoint which can also be done automatically by SIEM tool’s orchestrations that can easily find rule-based threats but the machine learning tool like splunk can detect far more abnormalities as well as predict the system performance (Figures 6 and 7, Tables 8-11).

Table 8: Snort analysis and control measure details.

Table 9: Suricata analysis and control measures details.

Table 10: Exploiting eternalblue on windows server with metasploitable.

Table 11: Splunk detecting threats and its curative measures.

Anomaly/behavior analysis workflow

With proper analysis of what the user is doing? from what location? Is the behavior threatening or not? and if our windows OS is safe or not? Is the activity done in windows OS endpoints justifiable or not? we need to know about all these with proper observation of user behavior. for this we need to know about someone’s location, their IP address, and if the user is authorized or not. All these question helps in finding a behavioral pattern to detect the threat and find abnormalities (Table 12).

Table 12: Anonymous login from linux to attack windows server.

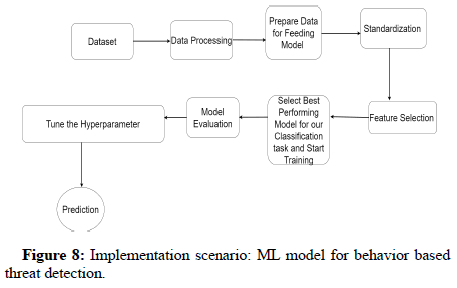

The algorithm for anomalies behavior analysis consists of following process:

• CICIDS2017 dataset collection.
• Data pre-processing.
• Normalization, standardization and feature selection.
• Split the datasets into train and test datasets.
• Choose classifier.
• Train the classifier.
• Find performance criteria and Do model evaluation.
• Tune the hyper parameter.
• Model prediction (Figure 8).

Data pre-processing

It is the process of transferring raw data into meaningful and valuable datasets. In Machine Learning (ML) forms, data preprocessing is basic for guaranteeing huge datasets are designed in such a way that the information they contain can be translated and parsed by learning calculations.

Steps in data-preprocessing are:

• Import the libraries.
• Import the data-set.
• Check out the missing values.
• See the categorical values.

Prepare data for feeding model

We do proper sampling and calculate standard deviation before feeding datasets into the model. Standard deviation is the average deviation of every value from the mean value in given datasets.

Where denotes the standard deviation. (N/B: This is lower case sigma).

x denotes each individual value in the data set.

x̄ denotes the sample mean. n is the number of values in the sample data set.

Feature selection and extraction

When there's a feature set F={f1, fi,…, fn} the issue in feature choice is to discover a subset that differentiates patterns whereas maximizing the learner algorithm’s execution capacities. Thus, the list of feature extraction algorithms’ scoring work is indicated by F’, the subset to be found. For optimality in feature extraction in machine learning, the feature is fetched around finding the scoring feature’s expanding include or ideal feature or just removing the unwanted features and taking the rest.

Create the train and test datasets

Machine learning model learns from your information to create expectations and find more accurate findings. So the data-set is generally divided into 80:20 ratios, where 80 percent is to train the model and 20 percent is used to test the model accuracy.

Standardization

Data standardization rescales the attributes so that the mean is 0 and the variance is 1 or in any range. Standard scaler is utilized to the dataset straightforwardly to standardize the input variables. To begin with, a standard scaler occurrence is characterized with default hyper parameters.

Choose PCA

The principal component examination could be a well-known unsupervised learning procedure for diminishing the dimensionality of datasets. It could be a procedure to draw solid patterns from the given dataset by diminishing the fluctuations.

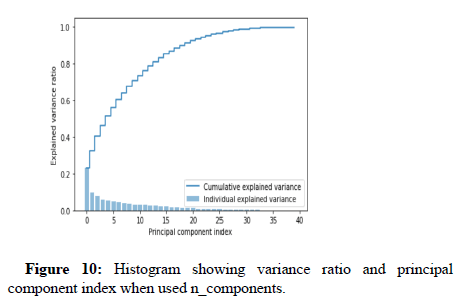

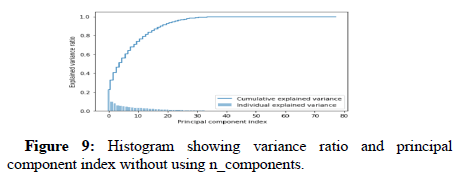

Choosing number of components in a PCA using explained variance method

In the underneath plot, each bar appears the explained change rate of individual components, and the step plot appears the cumulative explained change rates. By looking at this plot, we are able effortlessly to choose how numerous components ought to be kept. In this illustration, only the 25 components capture nearly all the fluctuation within the dataset. So, we choose to choose as it were 25 components (Figures 9 and 10).

Choose classifier

A random forest may be a machine learning method that’s utilized to unravel regression and classification problems. It utilizes ensemble learning, which uses strategy that combines numerous classifiers to solve complex problems.

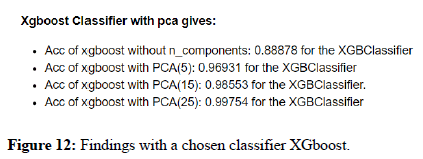

However, with our datasets we find more accuracy with XGBoost so, it has been used as final classifier. XGBoost is an execution of gradient boosted decision trees outlined for speed and execution. XGBoost could be a versatile and profoundly exact execution of gradient boosting that pushes the limitation of computing control for boosted tree algorithms, being built to a great extent for energizing machine learning model execution and computational speed.

Train the classifier

Training the classifier is done from the train datasets formed from the above procedure. Firstly, we train using random forest classifier for validating our experiment with the previous task, and then we use XGBoost to train it finally for better accuracy.

Find the performance criteria

The issue of predictive modeling is to form models that have great execution making predictions on modern unknown datasets. The execution of your machine learning models is done to know: How to examine your model utilizing the training dataset?, How to assess your model employing a random train and test split?

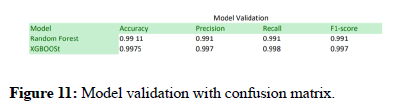

Model evaluation

Machine learning model evaluation is done with.

Confusion matrix

Confusion matrix is a matrix that depict the accuracy of a model on a set of dataset or ground label dataset for which the labeled true value has been already defined.

The confusion matrix has following terms

• In TP, the model predicted correct and it was actually correct.
• In TN, the model predicted correct but actually it was the not correct, also called false alarm.
• In FP, the model the false but actually it was true/correct.
• In FN, the model predicted correct but actually it as incorrect (Figure 11).

Model prediction

Model prediction helps in knowing whether the build model can accurately predict the datasets or not. The result of our experiment shows our model can predict with 99.75% accuracy (Figure 12).

Comparative analysis

In this research work, we will be comparing previously done work with our proposed methodology (Tables 13 and 14).

Table 13: Comparative analysis of SIEM tools used.

Table 14: Comparative analysis of paper work with CICIDS 2017 datasets for anomaly detection.

Phase III

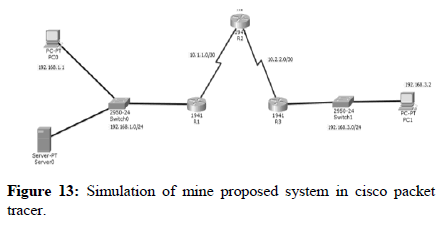

After completion of connection and address table, here first we have to check router version and if it’s needed then security technology package should be enabled on R1. In the initial step ping from PC-1 to PC-0 is successful. Also ping from PC-0 to PC-1 is successful.

Also creating IOS IPS configuration directory in flash and also creating IPS rule and signature storage location in R1. Now I have to enable syslog if it is not enabled and also need to enable the timestamp service to complete the configuration part (Figure 13 and Table 15).

Table 15: Objectives of cisco packet tracer.

OS hardening

Operating system enhancements typically include:

• Follow security best practices to ensure a secure configuration.
• Automatic operating system updates with patches and service packs.
• It provides additional security measures such as firewalls, endpoint protection systems, and operating system security extensions.

Patch management: Patch management is the strategy for recognizing, procuring, introducing, and confirming program patches for the system frameworks and its core parts, and products. Security patches rectify useful issues in the program and firmware. Patches serve on numerous other purposes than fair settling program imperfections; they can moreover include unused highlights to computer program applications and firmware form, counting security capabilities. To solve the problem of eternalblue, we need to do updating of windows OS.

Group policy for hardening: Using command gpedit on the command line, you can open a group policy that allows configuring access protocols, and software configuration to allow or disallow to run in the system for different user and admin accounts as well.

Windows powershell management: Powershell allows maintaining various security configurations in our endpoint like enabling VPN with command Vpnconnectiontriggerapplicationname"<Vpnconnection>"– ApplicationID"<AppPath>".

Windows defender activation all time: It provides different security features to our endpoint which has already been given by microsoft so, with windows defender we can secure our system from different vulnerabilities. It is simple, easy to use and provides a middle level security protection and can be a good security product for home users. Microsoft defender has been included in each form of windows since vista, and is presently fair one of a set of built-in free security instruments.

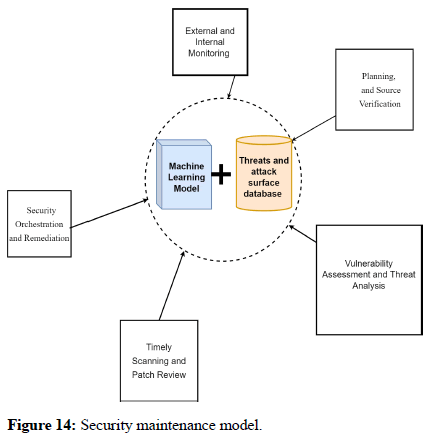

Maintenance

Maintaining security is a must in order to protect system for long run and focus on core and prioritized aspects of an organizational need or a system need to protect from any kind of threats. Using all the maintenance procedure mentioned below threat level can be minimized like threat with high CVSS scoring and finally solved. From all the experiment done and result found we see the need and importance of maintenance. Maintenance can be divided into different phases like: External and internal monitoring, planning and source verification, vulnerability assessment and threat analysis, timely scanning and patch review, security orchestration and remediation (Figure 14).

External and internal monitoring: Monitoring the external environment is all about examining threat, vulnerabilities, incoming traffic and all datasets needed to make a decision like we have collected logs from wireshark and pfsense to find threats and vulnerabilities.

Internal monitoring includes monitoring endpoint, its processing, and accessed products as well as incoming traffic and outgoing traffic like with splunk we have monitored user and entity analysis to protect our endpoints. Setting abnormal login attempt alert and DDoS prevention has been done with splunk. Monitoring Network devices, and channel as well as doing real-time analysis of windows OS has been done and all security has been monitored continuously for protecting endpoints. Thus, both external and internal monitoring helps in finding whether our endpoint is safe or not.

Planning and source verification: Planning and source verification is a must to do risk assessments which includes looking over entire system in order to reduce further risk and prioritizing risk should be done as per their severity and proper planning should be done to protect whole system from vulnerabilities. Like we have firstly planned to protect our windows OS endpoints and checked about all the incoming and outgoing traffic as well as access details. All the source must be verified for protecting system from anonymous access and any type of unknown risks.

Vulnerability assessment and threat analysis: Vulnerability assessment and threat analysis should be done like finding a vulnerability and protecting it with IDS/IPS has been done in this paperwork detects malware and other vulnerabilities and provides alert log as well as block malware files, traffic. Here we have done CVSS scoring to determine the severity of Risk. Threat using attack database and using machine learning model that detects and predicts the Threat occurred.

Timely scanning and patch review: Timely scanning and patch review can be done which helps in maintaining security protocols every time an endpoint is used. From time to time updating, maintaining security credentials, and disclosing any loopholes after passing the alert message using splunk and IPS have been done here with our paper work. Patches for eternalblue have been applied.

Security orchestration and remediation: Security orchestration and remediation is one of the milestone for security maintenance as with this every SIEM tools work effectively to continuously maintain security and monitor endpoints like the process monitor, process explorer and the splunk used. Also, the machine learning model that has been built can be deployed further for security orchestration. We have suggested and used different curative measures for different types of threats like hardening OS, patch updating, using antivirus as well.

Conclusion

The maintenance framework is considered as imperative components to develop an arrangement of conspire for compelling patching and convenient upgrading in end devices along with proper analysis of every sort of threats. Introducing, timely monitoring and upgrading security systems and patches can offer assistance organization gadgets to self-concise the issue and alarm if it’s useful. Although different threats are known still many threats are undetectable in this world so, for this we have built a model using random tree classifier using PCA with n_components 5, 15, 25 and XGBoost using PCA with n_components 5, 15, 25. Accuracy of random forest with PCA (5): 0.94892, PCA (15): 0.97634, PCA (25): 0.99118 for the random forest classifier while accuracy of XGBoost with PCA (5): 0.96931, XGBoost with PCA (15): 0.98553, for the XGBoost classifier so from this we find more accuracy with XGBoost and we get maximum scores by using n_features=25 which exceeds out threshold accuracy 85%. Similarly, model accuracy: 99.12% for PCA 25 and precision: 0.991, recall: 0.991, F1 score: 0.991 for random classifier with PCA 25 Accuracy of XGBoost: 0.99747 for the XGBoost classifier, model accuracy: 0.99754, precision: 0.997, recall: 0.998, F1 score: 0.997 for XGBoost classifier.

Thus, final result of this experiment gives a more accurate model for detecting new and unknown threat with our XGBoost model while all other known threats has been uncovered with signature-based model for all security related issues from all the abnormalities, inconsistent datasets and handling missing values and improving accuracy ratio.

Future Enhancements

The SIEM tool like splunk used for orchestration and security issue finding can be made more systematic to find threats with updated features in future as it has more potential rather than just finding user and behavior analysis for protecting endpoints and as well as finding remote data having threat sources. Also lots of work can be done to enhance maintenance phase like compliance editing, vulnerability assessment and risk assessment along with risk mitigation plan as backup. When the number of datasets increases then it increases model accuracy however it also brings more load on server and this can take more time and space along with good GPU supported system for proper prediction else can lead to information loss. So, some filtering methods can be used to limit the missing values. Also this model can be deployed at cloud to find more security issues but it will take some extra time and mathematical technique as well. Some other methods like Artificial Neural Network (ANN), convolution neural network can also be used for further work.
